Babcock Forceps: Identification, Uses, Sizes and Variants

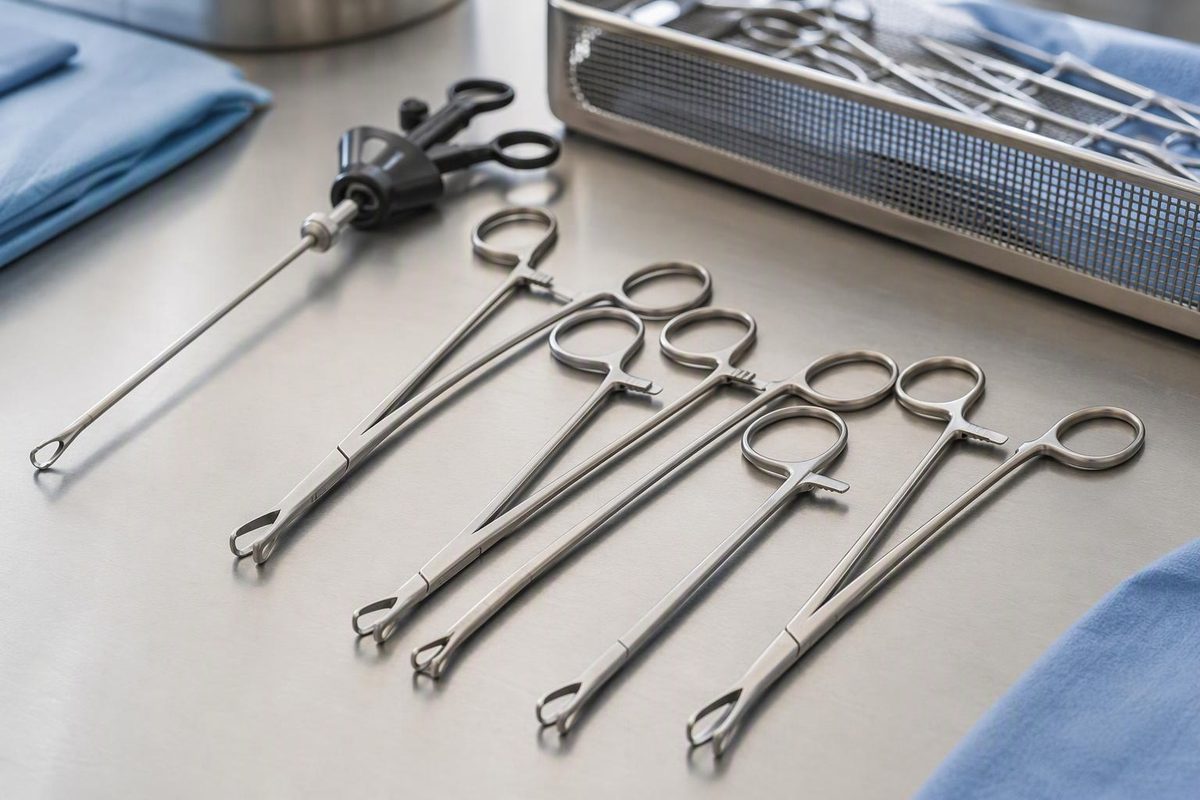

A conventional Babcock forceps is a ring-handled, locking tissue forceps with broad, rounded, fenestrated jaws. Identify it from those loop-shaped jaw windows first—not from the handles alone—and distinguish it from a conventional Allis forceps by the absence of projecting interlocking teeth. Then verify the length, jaw width, maker’s mark and catalog number because Babcock models differ substantially.

Select the jaw and handle pattern to narrow the identification.

Fenestrated Jaws Are the Main Identification Feature

The distal end provides the strongest visual evidence. Each Babcock jaw forms a broad loop with an open window, creating a rounded, fenestrated profile rather than a compact solid tip. When the forceps is viewed from above, both jaw openings should be apparent unless the jaws are obscured or damaged.

A conventional open-surgery pattern usually combines four features:

• Finger-ring handles: the instrument is operated through two rings.
• A ratchet lock: the toothed shanks can hold the jaws in a selected closed position.
• A box lock or comparable hinge: the opposing halves pivot together.
• Rounded fenestrated jaws: the distal loops flare beyond the narrower shanks.

Ring handles and a ratchet do not establish the identity by themselves. Hemostats, Allis forceps and other members of the broader surgical-forceps families can have the same general handle arrangement. Follow the instrument to its distal end before assigning a name.

The gripping surface also requires close inspection. “Toothless” should not be read as “smooth.” Aesculap’s conventional EA030R model is listed with an 8 mm serrated, fenestrated jaw. Its EA050R ATRAUMATA model instead has a 10 mm fenestrated jaw with DeBakey toothing (B. Braun EA030R; B. Braun EA050R). Both retain the characteristic windowed Babcock profile despite their different contact surfaces.

This distinction matters when a tray list uses only a family name. Serrations, DeBakey-style toothing and jaw width can separate two instruments that look like Babcocks at a glance but are not interchangeable catalog models.

Babcock Forceps Hold Intestinal Tissue and Other Tissue

Manufacturers classify the conventional pattern as an intestinal grasping or tissue-holding forceps. Aesculap lists an intestinal indication for its EA033R and associates that model with general or visceral surgery, gynecology and urology. Integra places its Miltex Babcock models in the intestinal specialty (B. Braun EA033R; Integra Miltex Babcock).

The broad loop separates the pattern visually from a small-point clamp and spreads contact across a wider jaw profile. That physical description does not establish that every Babcock-labeled product is suitable for every tissue or procedure. The name alone also does not specify gripping force, tissue compatibility, sterility, reuse status or an approved clinical application.

Those decisions must follow the labeling for the exact model, the procedure and the facility’s requirements. A catalog indication for one manufacturer’s instrument should not be applied automatically to a different product carrying the same family name.

Documented Babcock Sizes Range From Petite to Bariatric Models

There is no single standard Babcock length. Manufacturer listings reviewed for this guide include conventional and petite models from about 5 1/4 inches (13.3 cm) to 14 inches (35.6 cm), in addition to longer-shaft laparoscopic constructions.

Catalog Example	Overall Length	Stated Jaw Detail
König Petit MDS6416016P	5 1/4 in (13.3 cm)	6 mm jaw
Aesculap EA030R	6 1/8 in (155 mm)	8 mm, serrated and fenestrated
Integra Miltex 16-44	6 1/4 in (listed as 156 mm)	8.5 mm wide
Aesculap EA033R	7 7/8 in (200 mm)	9 mm, serrated and fenestrated
König MDS6416020	8 in (20.3 cm)	10.4 mm wide
Pilling 175005	12 in (31 cm)	Bariatric catalog model
König MDS6416035	14 in (35.6 cm)	Jaw width not stated

These figures are catalog examples, not a complete size standard. They also show why a length measurement alone cannot identify the manufacturer or model. Several products can occupy similar length ranges while differing in jaw width, surface pattern or intended catalog category.

The König catalog additionally lists 6 1/4, 7 1/2 and 12 inch conventional models, plus petite models with 6 or 7.5 mm jaws (König surgical-instrument catalog). Pilling separately documents its 12 inch 175005 model as a bariatric Babcock tissue forceps (Teleflex Pilling 175005).

For inventory or tray documentation, record the catalog number whenever it is available. “Babcock” omits details needed to distinguish petite, conventional, atraumatic and bariatric versions. If the listing does not state a jaw width, leave that field unknown rather than estimating it from the overall length.

Babcock and Allis Forceps Have Different Distal Jaws

A conventional Babcock and a conventional Allis may both have finger rings, a hinge and a ratchet. Their distal profiles are the practical dividing line.

Feature	Babcock	Allis
Distal form	Broad, rounded fenestrated loops	Compact opposed jaw tips
Gripping surface	Serrations or atraumatic toothing	Projecting, interlocking teeth
Main visual clue	Open jaw windows	Toothed tip and tooth count

Integra specifies 4 × 5 teeth on two straight Allis models. Its Babcock listings instead describe features such as jaw width and intestinal specialty rather than an Allis-style tooth count (Integra Allis).

An instrument with obvious interlocking teeth at a compact tip is therefore unlikely to be a conventional Babcock, even if its handles resemble those of one. Conversely, fine serrations or a model-specific atraumatic tooth pattern inside two broad windows do not turn a Babcock into an Allis. The position and overall form of the gripping features are more useful than the mere presence of surface texture.

Damage can complicate this comparison. A distorted loop, incomplete jaw or heavy retained soil may hide the feature needed for identification. Such an instrument should not be identified solely from the intact handle end.

Laparoscopic Babcock Forceps Are a Separate Construction

“Babcock” also names a laparoscopic jaw pattern. Integra’s reusable Jarit examples are insulated, 5 mm instruments with 350–390 mm working lengths and 30 mm jaws. The catalog includes several handle or lock configurations (Integra Jarit laparoscopic Babcock).

These products are not simply elongated versions of the familiar ring-handled forceps. Their long insulated shafts, laparoscopic handle systems and stated working lengths place them in a different construction category, even though the distal jaw pattern carries the Babcock name.

For a laparoscopic instrument, record the shaft diameter, working length, insulation, jaw dimensions, action and locking mechanism separately. A tray entry that says only “Babcock” does not distinguish a reusable open instrument from a 5 mm insulated laparoscopic model.

The published 350–390 mm figures apply to the cited Integra Jarit examples; they should not be treated as universal dimensions for every laparoscopic Babcock product. The same limitation applies to their 30 mm jaws and listed handle configurations.

Confirm the Model From Its Markings and Catalog Record

Once the jaw shape establishes a likely Babcock pattern, use the instrument’s markings and dimensions to refine the identification. Start with any etched maker name, reference number or catalog number. Then compare the overall length and the jaw width with the matching manufacturer record.

Use the catalog description literally. A listing that states “serrated and fenestrated” documents those features for that model. It does not prove that every Babcock has the same serration pattern. Likewise, a product labeled ATRAUMATA or described with DeBakey toothing should retain that distinction in the inventory record rather than being reduced to a generic “Babcock” entry.

Do not infer an undocumented measurement. The König 14 inch example in the reviewed listing does not state a jaw width, so the appropriate value for that field is unknown. A measurement taken directly from an instrument can be recorded as an observed measurement, but it should not be presented as a manufacturer specification unless the manufacturer supplies it.

Inspect Fenestrations, Alignment, Lock and Surfaces

For a reusable open Babcock, inspect both fenestrations and all gripping surfaces for retained soil. The open loops create interior edges and transitions that need direct visual attention rather than a check limited to the outer jaw faces.

Confirm that the paired jaws meet in alignment without visible twisting. Operate the box lock through its range and engage the ratchet to check for smooth, secure action. The jaw loops should not be distorted, and the working surfaces should not show cracks, corrosion or pitting.

Prevent soil from drying, then clean and process the instrument according to the exact device manufacturer’s instructions for use and the facility’s approved procedure. During preparation and packaging, inspect cleanliness, function and alignment and check for soil, corrosion, pitting, cracks and other damage (Medline surgical-instrument cleaning guide).

Do not apply a cycle taken from an unrelated reusable-instrument IFU. Instruments sharing the Babcock name can differ in construction, insulation, handle design and manufacturer instructions. A laparoscopic model in particular requires identification of its full construction before reprocessing directions can be matched to the device.
